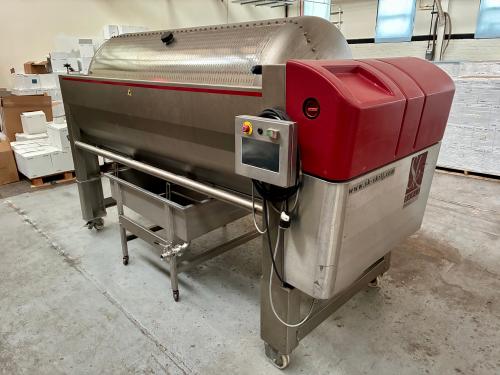

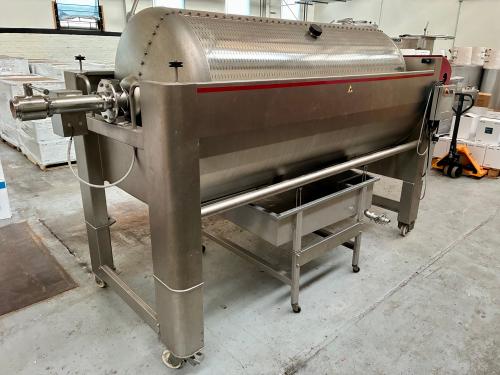

2016 SK PSP 16 ATK 3PH pneumatic membrane press available in Allentown, PA.

16HL / 1600L capacity. Fully automatic pneumatic membrane press with touchscreen controls and pre-programmed press cycles. This is a good fit for a small to mid-size winery looking to add or upgrade pressing capacity without buying new.

This press is designed to reduce harvest labor. Once loaded, press cycles can be run automatically with minimal supervision, allowing the operator to manage other cellar work during pressing. Useful for wineries that need better harvest efficiency, more pressing capacity, or a more automated alternative to smaller/manual pressing setups.

Key specs:
- Manufacturer: SK
- Model: PSP 16 ATK 3PH
- Manufactured: 2016
- Serial No.: 16200065
- Capacity: 1600L / 16HL
- Voltage: 230V / 60Hz
- Total power: 4.6 / 2.3 kW
- Max pressure: 1.5 bar
- Weight: approx. 610 kg / 1,345 lbs
- Made in Slovenia

Features:
- Touchscreen control panel
- Pre-programmed automatic press cycles
- Pneumatic membrane press design
- Axial fill port for loading crushed fruit/must directly from must pump
- Overload alarm on axial feed port
- Large door for loading, unloading, and cleaning
- Integrated pomace dump function
- Extended legs allow a half-ton bin to slide underneath for pomace discharge
- 60-gallon stainless juice/wine collection pan included
- On wheels for movement and positioning
- Designed for dock-height loading

Capacity / use:
Approx. 4 tons of crushed grapes or must per load, depending on fruit condition and how the press is loaded. Whole cluster capacity is lower, approximately 0.5–1 ton depending on cluster size, loading method, and fruit condition.

The axial fill port allows crushed fruit or must to be pumped directly into the press basket from a must pump. This is a useful feature for efficient crushpad workflow and is not included on all presses. The overload alarm on the axial feed port helps protect the press during loading.

The extended legs allow a half-ton bin to slide underneath the press for pomace discharge. This makes unloading faster and cleaner compared with lower presses that require more manual handling of pomace.

Condition:
Used in commercial winery production. Stored indoors in conditioned space since 2020. Solid, functional press with normal production use.

The press has been used for multiple harvests and has been kept indoors. It is not a neglected outdoor machine. Buyer should expect normal used winery-equipment wear, but the press is complete, functional, and suitable for continued commercial winery use.

Loading / pickup:
Located in Allentown, PA. Loading dock available for dock-height truck pickup. Press is on wheels and can be rolled directly onto a dock-height truck, avoiding the need for complex rigging in most pickup scenarios.

Best pickup method is a dock-height truck backed up to the loading dock, with the press rolled directly onto the truck. Buyer is responsible for pickup, freight, and removal logistics.

Asking $12,500. Reasonable offers considered for prompt pickup.

Payment in full required prior to release.

Additional winery equipment is also available, including stainless tanks, crusher/destemmer, pumps, filter housing, and cellar equipment.
