Title:
Semi-auto vacuum champagne corker with Hopper
Date Posted:
Saturday, September 9th
Location:
lompoc, CA
Quantity:
1
Price:
9000
Company:
Sevtap Winery
Description:

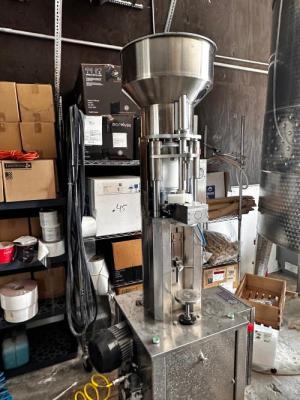

PG 2010 S Semi-auto vacuum regular/champagne corker with cork hopper.

MAIN CONSTRUCTION CHARACTERISTICS:

100% stainless steel unit on wheels
Semi-automatic corking machine with on/off switch
suitable for champagne and standard wine corks

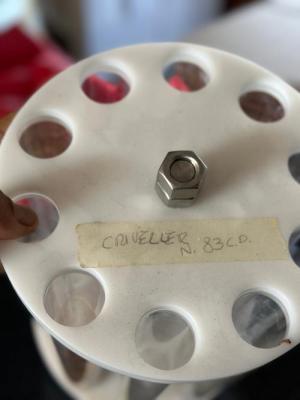

Automatic cork distribution through a plastic cork turret, holds approx. 50 corks
Bottle lifting is pneumatic
Electric and pneumatic operations
Steel jaws and bronze trolleys controlled by numerical control and working center
Electric panel equipped with commands and protections according with CE norms
Operation by means of dual push buttons located on top of base ( approx. 29.5” high)
Vacuum system with innovative design: works as a VENTURI system
Therefore NO NEED OF a VACUUM PUMP
Corker will require electrical power and compressed air.
Can bottle 0.375, 0.75 and 1.5 liter bottles
Bottle diameter: Min: 60mm Max: 120mm
Bottle height: Min: 240mm Max: 380mm
Corks max. Diameter 35 mm x Height 45mm
Single Phase power
Stainless steel cork hopper, for multi-directional corks only
Output: 1,000 bottles per hour (this may vary depending on operator)
220V / 60 HZ / 1 Phase
Overall Dimensions:
Length: 650 mm (2’)
Width: 551 mm (1’8”)
Height: 1951 mm (6’4”)
Weight: 150 kg (331 lbs)
Semi-auto vacuum champagne corker with Hopper Semi-auto vacuum champagne corker with Hopper
Contact Information
Sevtap Winery
ERTUGRUL SEVTAP
